The fed-batch technique is an important biotechnological process strategy. Unlike the simpler Batch strategy, the substrate for microbial growth is not administered all at once but added over time. This allows control over the culture growth and product formation, whilst avoiding reactor limitations. Despite these advantages, a fed-batch will require optimization, which can present its own challenges.

This article shows one possible **strategy to optimize a fed-batch.** However, the topic is highly controversial, and many experts will recommend a different approach. The shown procedure is labour intensive but usually leads to success. Additionally, the gained strain characterisation can be used for further optimization, scale-up, risk analysis and a quality by design approach.

## 1. Define the goal

Each optimization process needs a defined goal. Assuming a recombinant protein shall be produced, **the typical objective for the optimization is to reach the highest possible amount of product in the shortest possible time** – hence maximizing the product time yield. This article demonstrates a possible strategy to achieve this goal. For any other goal, the shown strategy may be altered accordingly.

## 2. Characterize the growth of your strain

The growth behaviour is strain dependent and must be known in order to thoroughly master a fed-batch. The growth can be characterised using the following key figures:

*µ*Maximum specific growth rate_{max}

Grams of new biomass produced by one gram of biomass per hour, when the substrate is unlimited (→ batch)

*Y*Maximum yield biomass/substrate_{x/s,max}

Grams of new build biomass when one gram of substrate is consumed, and the substrate is unlimited (→ batch)

*m*Specific rate of substrate consumption for cell maintenance_{s}

Minimum amount of substrate consumed per gram of biomass per hour in order to survive

These figures can be seen as constant for a strain providing the cultivation conditions including substrate, pH, temperature, etc., do not change. The values for *µ _{max}* and

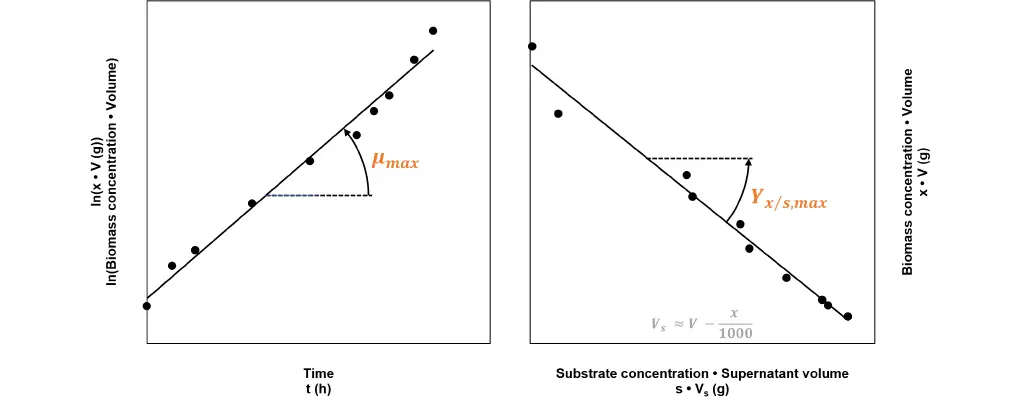

*Y*can be obtained from batch data (Fig. 1). The value for

_{x/s,max}*m*, requires data from several fed-batches which may not be readily available, therefore literature values are commonly used instead.

_{s}Using these values, it is possible to calculate the feed rate required to reach a desired specific growth rate *µ _{set}* in a fed-batch:

**First the asymptote value for the yield biomass/substrate***Y*is calculated._{x/s,abs}**With**Additionally, the biomass concentration*Y*the starting feeding rate_{x/s,abs}*F*can be calculated._{0}*x*and cultivation volume_{0}*V*at the start of the fed-batch and the substrate concentration in the feeding media_{0}*w*are required._{in}- To reach a constant specific growth rate,
**the temporal course of the feeding rate**by the following equation, where*F*is calculated_{t}*t*is the time elapsed since the fed-batch started.

## 3. Characterize the product formation of your strain

The productivity of the strain is characterised by the specific product formation rate *q _{p}*, which corresponds to the amount of product produced by one gram of biomass per hour. The value of

*q*is not constant, but highly dependent on the specific growth rate

_{p}*µ*. The dependency is different for each strain and must be determined empirically. At least three fed-batch processes, each at a different

*µ*, must be carried out to give an accurate characterisation. Fig. 2 shows how the process data can be used to calculate the reached growth rate and specific product formation rate, and details how the dependency of these two figures can be approximated.

_{set}

## 4. Optimize the fed-batch

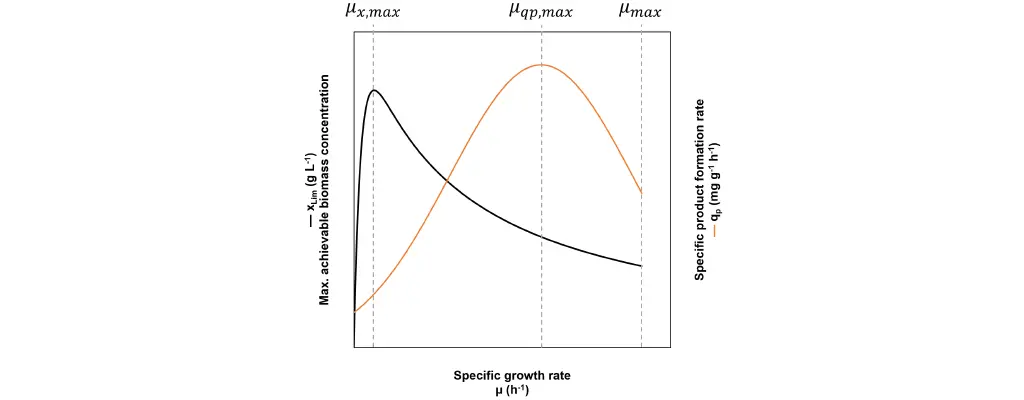

Rapid proliferation, high productivity per biomass and high biomass concentration are all prerequisites to maximize the product time yield. The dilemma is that they cannot be achieved at the same specific growth rate (Fig. 3).

**This predicament is the reason why a fed-batch requires an optimization. It can be solved by temporal segregation into three phases, each with a different goal:**

### Batch phase → Maximized biomass proliferation

A rapid biomass growth is achieved by introducing a batch phase prior to the fed-batch. As the substrate is available in abundance, the microorganisms will grow at the maximum speed characterised by the maximum specific growth rate.

Defining the batch’s volume and concentration is an optimization issue of its own. In general, we recommend the following procedure:

**Substrate:**if the specific product formation rate is close to zero at the maximum specific growth rate (Fig. 3) and the maximum specific growth rate is low compared to other substrates, it is worth using a substrate with a higher*µ*during the batch phase. This is often the case for_{max}*Pichia pastoris,*where the batch is conducted with glucose for rapid proliferation, while methanol is used during the fed-batch to induce the AOX promoter driven product formation.

**Substrate concentration:**For most organisms (or organism classes) standardized batch media containing balanced levels of compounds exist. It is not advisable to change the substrate concentration in this type of media, as it may lead to limitations or excesses in other compounds. Instead, it is recommended to use a standardized batch medium with a regular amount of substrate whenever possible. If modifications are nevertheless necessary, the rule is: the higher the starting substrate concentration*s*, the shorter the whole process will last – but the amount of product will decrease._{0}

**Volume:**To maximize the product quantity, the reactor must be filled completely by the end of the fed-batch. The easiest way to achieve this is by using an empirical approach. For the first run the starting volume is set to the minimum working volume of the reactor*V*. The volume at the end of the fed-batch is measured and defined as_{min}*V*. The required starting Volume_{end}*V*to reach the maximum working volume_{0}*V*by the end of the process, can then be calculated as follows:_{max}

### Exponential fed-batch → Maximized productivity per biomass

Once the substrate from the batch has been depleted, an exponential fed-batch is started. Since the biomass concentration is still comparably low and will only increase over time, a high productivity per biomass is emphasised. Therefore, the fed-batch is carried out at the specific growth rate resulting in the maximum specific product formation rate (µ_{qp,max} → q_{p,max}). If µ_{qp,max} is greater than 80% of µ_{max}, the specific growth rate is set to 80% of µ_{max} to avoid substrate accumulation.

### pO2 dependent fed-batch → Maximized biomass concentration

Eventually, the bioreactor’s limits for cell maintenance will be reached. In lab scale, this typically means that the media’s oxygen saturation *pO2* will drop to zero. A very low *pO2* can alter the metabolism or even the product quality. This can be circumvented by defining a lower boundary for the oxygen saturation *pO2 _{L}*, which should not be undercut.

When *pO2 _{L}* is reached, it is possible to reduce the set specific growth rate to allow for a further increase of the biomass concentration without causing an oxygen shortage. However, this will also decrease the specific product formation rate. Therefore, the specific growth rate should only be reduced gradually, with each step trading a reduction in the specific product formation rate for a higher biomass concentration (Fig. 4). The easiest way to achieve this is to combine the exponential fed-batch and the

*pO2*dependent fed-batch into one feeding algorithm:

- For the first iteration
**the initial feeding rate**In this case*F*is calculated._{start}*x*is the biomass concentration after the inoculation._{0} - Afterwards,
**the feeding rate is modified depending on the**where*pO2*value,*F*is the current,_{t}*F*the last feeding rate and_{t-1}*Δt*the time elapsed between the two.

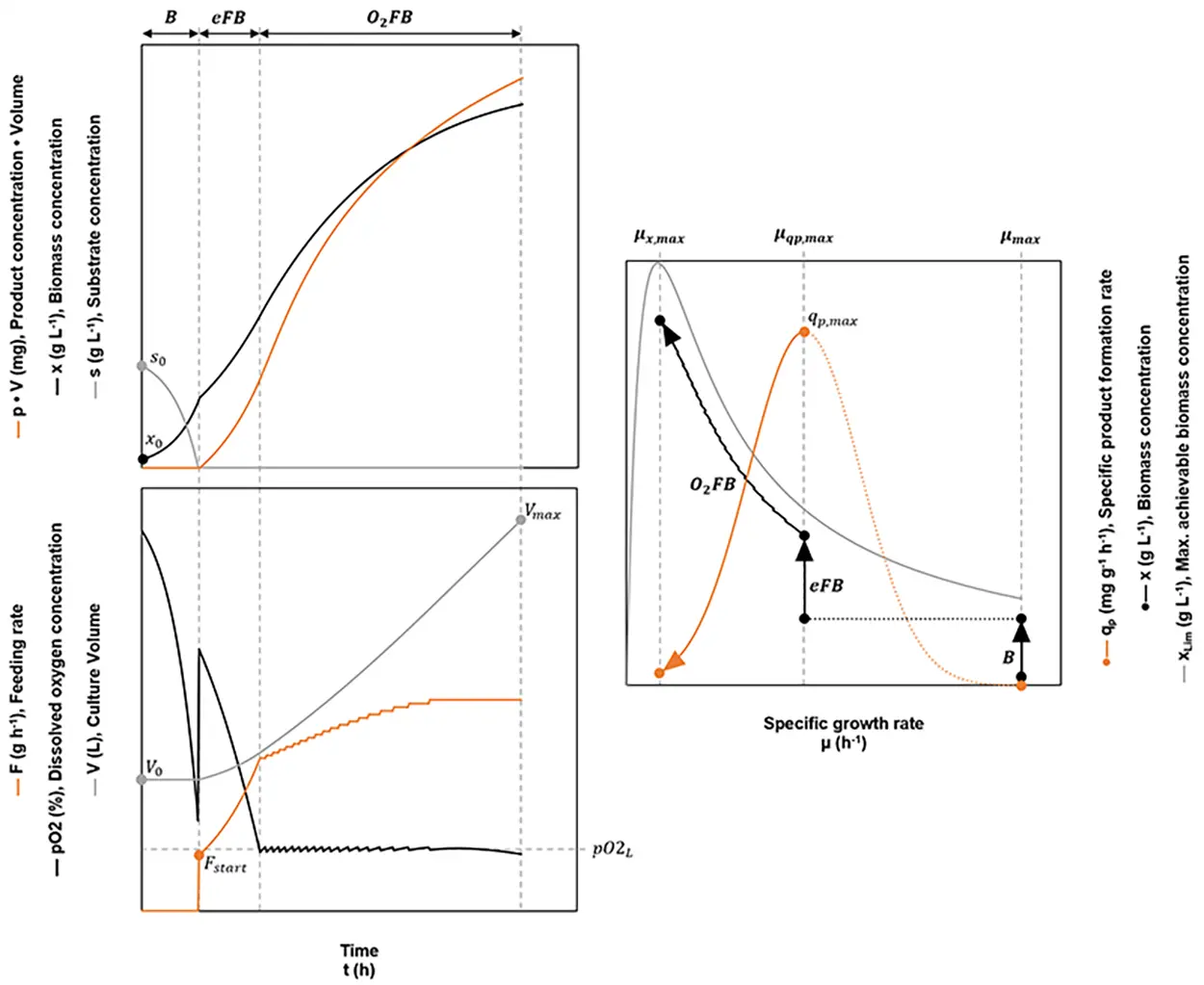

The process will conclude when the *pO2* decreases despite a constant feeding rate has been reached (Fig. 4). At this point, any further increase of the biomass concentration will cause an oxygen shortage.

It must be highlighted that for larger reactor types, the limiting factor may be the heat dissipation instead of the *pO2*. Therefore, the temperature will permanently increase above the setpoint. In this instance, the shown strategy can be altered accordingly.

## 5. Consider further modifications

If the resulting bioprocess does not lead to a satisfactory result, the set specific growth rate for the exponential fed-batch can be altered. Reducing it below *µ _{qp,max}* will potentially lead to a higher amount of product but will increase the process duration. Alternatively, an increase will lead to a shorter process duration, while reducing the yielding amount of product.

## Summary

- Optimizing a fed-batch is labour intensive. Therefore, it is important to have a proven strategy to make the time invested worthwhile.
- This article shows one possible strategy to maximize the resulting amount of product in the shortest possible time. If needed, it can be altered in order to match another goal.
- The key to success is to divide the process into phases, each with a different goal and to set the specific growth rate according to the goal of each phase.

**Nomenclature**** **

µ |
h^{-1} |
Specific growth rate |

µ_{max} |
h^{-1} |
Maximum specific growth rate. Reached at unlimited growth (batch) |

µ_{qp,max} |
h^{-1} |
Specific growth rate which leads to qp,max |

µ_{set} |
h^{-1} |
Set specified growth rate for a fed-batch |

µ_{w} |
h^{-1} |
Width value of the q(_{p}µ) dependency |

µ_{x,max} |
h^{-1} |
Specific growth rate which leads to maximum biomass concentration |

F_{0} |
g h^{-1} |
Initial feeding rate |

F_{start} |
g h^{-1} |
Initial feeding rate for the optimized fed-batch |

F_{t} |
g h^{-1} |
Feeding rate at time t |

m_{s} |
g g^{-1} h^{-1} |
Specific rate of substrate consumption for cell maintenance |

pO2 |
% | Dissolved oxygen concentration in medium |

q_{p} |
mg g^{-1} h^{-1} |
Specific product formation rate |

q_{p,max} |
mg g^{-1} h^{-1} |
Maximum specific product formation rate |

s |
g L^{-1} |
Substrate concentration |

s_{0} |
g L^{-1} |
Substrate concentration at the time of inoculation |

t |
h | Elapsed time since fed-batch started |

Δt |
h | Elapsed time between two iterations |

V |
L | Volume of cultivation broth |

V_{0} |
L | Volume of cultivation broth after inoculation |

V_{end} |
L | Volume of cultivation broth reached by a characterisation fed-batch conducted with V0 = Vmin |

V_{max} |
L | Maximum working volume of the reactor |

V_{min} |
L | Minimum working volume of the reactor |

V_{s} |
L | Supernatant volume |

w_{in} |
g g^{-1} |
Substrate content in the feeding medium |

x |
g L^{-1} |
Biomass concentration |

x_{0} |
g L^{-1} |
Biomass concentration after inoculation |

x_{Lim} |
g L^{-1} |
Maximum achievable biomass concentration, limited by the oxygen supply of the reactor |

Y_{x/s} |
g g^{-1} |
Yield biomass/substrate |

Y_{x/s,abs} |
g g^{-1} |
Asymptotic value of the Yx/s(µ) dependency |

Y_{x/s,max} |
g g^{-1} |
Maximum yield biomass/substrate. Reached at unlimited growth (batch) |

B | – | Batch phase |

eFB | – | Exponential fed-batch phase |

O2FB | – | pO2 dependent fed-batch phase |
